Our high-precision eyelet terminal series is engineered to ensure ultra-reliable low-impedance connections across high-current electrical systems. Leveraging mirror-finished contact surfaces created by EDM (Electrical Discharge Machining), these terminals eliminate signal loss, mechanical burrs, and resistance spikes that plague conventional stamped terminals.

Mirror-Finished Eyelet Terminal for Critical Electrical Applications

Our eyelet precision terminal technology uses mirror EDM to create sub-micron chamfers at Ra ≤0.1μm, ensuring 100% gas-tight crimps. With 45°±0.5° edge angles, wire insertion becomes seamless, while the C51000 phosphor bronze base offers up to 50N axial retention force. These terminals consistently achieve electrical contact resistance ≤2mΩ — critical for automotive, industrial, and renewable energy applications.

Precision Engineering in Mirror-Finished Contact Terminals

Tungsten carbide tooling guarantees ±0.002mm die accuracy across over one million stamping cycles. Vision inspection systems verify critical contact zones to ±0.003mm, ensuring consistency for every mirror-finished contact delivered. This level of dimensional control is essential in power electronics, ECU interfaces, and solar junctions.

Why Our Eyelet Terminals Deliver Superior Low-Impedance Connection

• Chamfering Excellence: Mirror EDM reduces contact resistance by 30% compared to traditional polishing.

• Mechanical Strength: Phosphor bronze ensures long-term retention and vibration resistance (20G validated).

• Thermal Stability: Performance exceeds USCAR-2 and LV214 under harsh automotive cycling.

• Conductivity Leadership: Custom copper alloy (C19700) offers 85% IACS conductivity.

• Scalable Output: 250,000+ units/day capacity with automated sorting and <50PPM defect rate.

Applications

Automotive E/E Architecture: Battery busbars, ECU grounding terminals, EV charging ports.

Industrial Control Systems: PLC wiring panels, motor terminal blocks, robotic arm connectors.

Renewable Energy: Solar inverter junctions, wind turbine power distribution units.

Consumer Electronics: Power supply units, appliance control boards.

5 Reasons to Choose Us

Chamfering Revolution:

Mirror EDM surpasses mechanical polishing, achieving optical-grade finishes that reduce contact resistance by 30%.

Tooling Mastery:

Tungsten carbide dies maintain ±0.002mm tolerance through 1M+ stamping cycles.

Material Science:

Custom alloy formulations (e.g., C19700 copper) optimize conductivity (85% IACS) and stress relaxation resistance.

Validation Rigor:

Exceeds USCAR-2 and LV214 standards for crimp integrity (20G vibration/thermal cycling tests).

Scalable Precision:

250K units/day output with automated sorting (defect rate <50 PPM).

Explore electrical contact reliability standards via the USCAR-2 Performance Specification

Looking for more similar products?

This innovative automotive connector is developed using advanced 3D simulation unfolding and a multi-stage anti-deformation structure, enabling tight tolerances even in ultra-thin metal forming.

• Side-Push Material Bridge: Reinforces geometry while maintaining surface roughness ≤Ra 0.8μm.

• Segmented Pressure Ribs: Solves 90° bending issues with 0.5mm stainless steel (width < thickness).

• Zero-Burr Cutting: A pneumatic ejection process ensures ±0.03mm tolerance and defect-free edges.

High-Stability Electrical Enclosure for Extreme Environments

This enclosure ensures signal integrity and mechanical resistance even under vibration or extreme temperatures. It’s engineered for:

• NEVs: Battery Management Systems (BMS), high-voltage plug housing.

• Traditional Vehicles: ECU units, sensor harness shielding.

Certified to perform across -40℃ to +125℃ thermal cycles, this automotive connector housing meets the highest reliability standards.

Why Choose This Automotive Connector?

1. Digital Simulation Leadership
   3D unfolding simulates deformation patterns, achieving a 99.2% first-pass yield.

2. Exclusive Forming Technology
   Solves long-standing deformation issues in thin-wall bending.

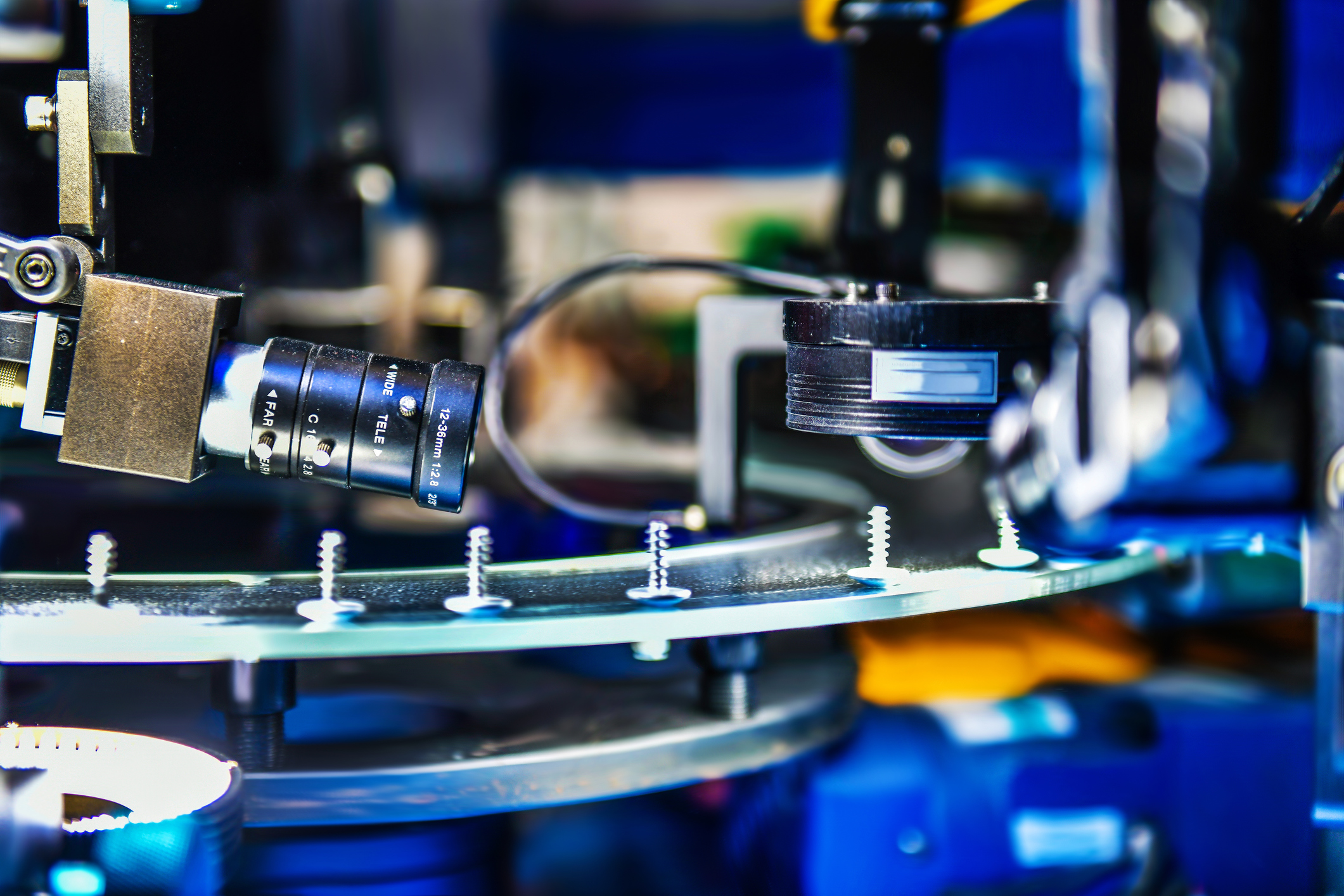

3. Automated Quality Control
   CCD inspection prevents batch failures, maintaining production accuracy.

4. ISO/TS 16949 Certified
   Guarantees long-term durability and automotive-grade quality compliance.

Applications

New Energy Vehicles (NEVs): Battery Management System (BMS) high-voltage connectors, motor controller housings.

Traditional Fuel Vehicles: ECU control units, sensor wiring harness shields.

5 Reasons to Choose Us

1.Dedicated R&D Assurance:

Cross-functional teams manage full lifecycle control from design to mass production, solving structural unfolding and stability challenges.

2.Digital Simulation Leadership:

3D dynamic unfolding simulations predict material deformation, achieving 99.2% first-pass yield.

3.Proprietary Manufacturing Breakthroughs:

Exclusive side-push material bridge + segmented pressure rib technology addresses thin-wall bending deformation.

4.Automated Precision Production:

CCD optical inspection monitors real-time dimensional variations, preventing batch defects.

5.Automotive-Grade Reliability:

ISO/TS 16949 certified with validation under -40℃~125℃ thermal cycling tests.

Automotive Connector Design for Harsh Environments (DoFollow)

Looking for more similar products？

Precision Form Valve Housing delivers ultra-thin (0.2mm) durability with 1:6 stretch ratio. ISO/TS 16949-certified dust-free welding for VVT/transmission systems. 20+ OEM variants

Advanced Multi-Stage Forming Process

Precision Engineering

• Deep drawing + rolling for structural integrity

• ±0.05mm tolerance for high-pressure applications

•  Forming Technology Whitepaper

Performance Validation

Material Breakthroughs

Ultra-Thin Design

• 0.2mm thickness with 1:6 stretch ratio

• 30% weight reduction vs conventional housings

Corrosion Solutions

• Optional coatings:

  • Zn-Ni (salt spray 1000h)

  • DLC (≤0.1μm friction)

  • ASTM B633 Coatings

Quality & Customization

OEM Compliance

✔ ISO/TS 16949 certified production
✔ Full traceability with laser marking

Rapid Prototyping

• 45-day NPI cycle

• 20+ standard variants

•  Customization Guide

Precision Form Valve Housing Application :

VVT Engine, Transmission, Oil Pump Valve

Our Advantages:

High-Performance Design: Optimized fluid dynamics for improved valve response.

Zero-Rework Production: Full-process automation minimizes human error.

Corrosion Resistance: Optional coatings available for harsh operating environments.

Rapid Prototyping: 45-day NPI cycle for custom geometries.

Trusted by Tier 1 suppliers, our valve housing solutions enhance system efficiency while reducing total ownership costs. Contact us to validate specifications or request sample testing.

Energy & Cost Efficient Production

Sustainable Manufacturing

• 30% lower energy use vs high-precision stamping

• General punching machines reduce carbon footprint

Cost Optimization

Single-Stamp Complex Structures

Precision Engineering

✔ Flanged holes formed in one operation
✔ Multi-dimensional contours with ±0.1mm tolerance
✔ 20+ design variants available

Quality Assurance

• 100% dimensional checks with CMM

•  Quality Control Process

OEM EcoStamp VVT Cover Compliance & Global Applications

Automotive Solutions

• Passenger cars & commercial vehicles

• Hybrid/electric vehicle engines

• IATF 16949 Standards

EcoStamp VVT Cover Industrial Adaptability

• Agricultural machinery

• Marine engines

EcoStamp VVT Cover Application :

VVT Engine

Our Advantages:

Sustainability Focus: Reduced carbon footprint through energy-conscious manufacturing.

Precision Engineering: Zero post-stamping machining guarantees part consistency.

Scalable Supply: Mature production infrastructure supports large-volume orders.

Cross-Platform Compatibility: Comprehensive product range simplifies OEM integration.

Ideal for modern VVT engines, our cover plate enhances timing system efficiency while delivering unmatched cost-performance value. Contact us to explore tailored solutions for your engine production requirements.

Learn more about Zhengqiang’s strength

Eco Extrude EV Connector Technology

Eco Extrude EV Connector reduces material waste by 35% via copper cold extrusion. Exceeds IEC 62196/UL 1977 standards for battery packs & energy storage systems. 99.8% defect-free

Revolutionary Cold Extrusion Advantages

Precision Manufacturing

• 35% less material waste vs machining

• 20% lower production costs

• ±0.1mm dimensional accuracy

• Cold Extrusion Whitepaper

Performance Validation

Certified Reliability for EV/ESS

Global Compliance

✔ UL 1977 (North America)
✔ IEC 62196 (International)
✔ GB/T 20234 (China)

Quality Assurance

• 99.8% defect-free rate

• Automated optical inspection

• Quality Process

Universal Platform Compatibility

Applications

• EV Battery Packs: 300V-1500V systems

• Energy Storage: Cabinet busbar links

• SAE J3068 EV Standards

Custom Solutions

• Tin/Nickel plating options

• Adjustable lengths/angles

•  Customization Guide

Application :

New Energy Vehicles, Energy Storage Systems

Eco Extrude EV Connector  Advantages:

Energy Efficiency: Ultra-low resistance (<0.15μΩ) minimizes thermal loss.

Corrosion Resistance: Tin-plated or nickel-coated options for harsh environments.

Scalability: Customizable lengths, angles, and terminal sizes.

Sustainability: Fully recyclable materials align with circular economy goals.

Why Choose Us?

Certified Excellence: Compliant with IATF 16949 and ISO 14001 standards.

R&D Agility: 30-day rapid prototyping for custom designs.

Global Support: Warehouses in EU, Asia, and North America ensure prompt logistics.

Power Flow Copper Busbar delivers ultra-low resistance (<0.5μΩ/m) with 10kV safety certification. Multi-process manufacturing ensures 15+ year lifespan for energy storage & EV applications.

• Combines riveting, overmolding & heat-shrink tubing

• Vibration resistance tested to IEC 60068-2-6

•  Busbar Manufacturing Process

Performance Advantages

10kV Safety-Certified Reliability

Rigorous Testing Protocol

✔ 10kV withstand voltage (IEC 61439)
✔ -40°C to 125°C thermal cycling
✔ Salt spray 1000h (ASTM B117)

Safety Assurance

• Automated hi-pot testing on 100% units

•  Safety Certifications

Ultra-Low Resistance Design

Conductivity Performance

• <0.5μΩ/m resistance (99.99% Cu)

• 15+ year lifespan with anti-oxidation coating

Material Science

• Electrolytic copper C11000

• Optional tin/silver plating

• Copper Council Data

Application :

High-Voltage Cabinets for Energy Storage,  New Energy Vehicles

Our Advantages:

Backed by ISO 9001 and IATF 16949 certifications, our copper busbars redefine conductivity and durability for the green energy era. Request a free sample to experience how our solutions elevate your system’s performance while cutting lifecycle costs.

Why Choose us?
Backed by ISO 9001 and IATF 16949 certifications, our copper busbars redefine conductivity and durability for the green energy era. Request a free sample to experience how our solutions elevate your system’s performance while cutting lifecycle costs.

Corrosion-Resistant Precision Automotive Hardware

Corrosion-resistant precision automotive hardware engineered for engine systems. Phaser cover plates & guide sleeves with IATF 16949 certification. Trusted by FAW-Volkswagen & BYD.

Engineered for Demanding Automotive Applications

Superior Corrosion Protection

• Zinc-nickel & DLC coatings withstand 1000+ salt spray hours

• Stainless steel variants for extreme environments

•  Coating Technology

Precision Performance

✔ ±0.01mm tolerances for perfect fit
✔ IATF 16949 certified production
✔ Tested to SAE/USCAR standards

Trusted by Automotive Leaders

OEM-Approved Quality

• Direct supplier to FAW-Volkswagen, BYD, Yamaha

• Zero-defect PPM <50 in mass production

NEV-Focused Solutions

• Charging gun pins with <1mΩ resistance

• EMI shielding components

• SAE J1772 Charging Standard

Advanced Manufacturing Capabilities

High-Volume Production

• 50M+ annual capacity

• Automated CNC machining

Customization Services

• Material selection (stainless/copper alloys)

• Coatings optimized for application

•  Custom Solutions

High-Precision Stamping Technology NEV-Specific Stamping Capabilities

• ±0.1mm dimensional accuracy for battery systems

• 10+ automated stamping lines for mass production

• Custom die designs for complex geometries
  Stamping Technology Whitepaper

Energy Storage System Components Reliable Stamped Parts for ESS

• Copper/aluminum busbars (<0.5mΩ resistance)

• IP67-rated enclosures for outdoor ESS
  IEC 62619 ESS Standards

Quality & Compliance Assurance

Automotive-Grade Certifications

IATF 16949 Certified Production

• Zero-defect batches for OEMs

• Full material traceability
   IATF Standards

Rigorous Testing Protocols

Performance Validation

Custom Solutions & Scalable Production

Tailored Components

Design Flexibility

• 15-day prototype turnaround

• Material options: Aluminum 6061, Copper C11000
  Custom Solutions

Mass Production

High-Volume Capacity

• 5M+ annual output

• Just-in-time delivery
   Production Capabilities

Why Choose Us?

Trusted Partnerships

• Serving Bosch, Amphenol, Fulin Precision

Innovation Driven

• R&D focus on lightweighting & conductivity

Global Supply Chain

• On-time delivery 99.9% SLA

Precision stamping parts

High-quality Precision stamping parts for new energy vehicles and energy storage systems. IATF 16949 certified with 10+ automated lines. Custom solutions for battery enclosures & busbars.

Customize Precision Stamping Parts
