CoilCore Precision Windings are developed to meet the growing demand for precision coil components that offer exceptional reliability in electromagnetic applications. Leveraging automated coil winding technologies, our production line ensures tight dimensional tolerances and stable electrical performance in every unit.

These windings are engineered for use in magnetrons, microwave generators, RF amplifiers, and other high-frequency power systems where electromagnetic stability is crucial. With daily production capacity of up to 25,000 units, our solution is scalable, consistent, and optimized for global supply chain integration.

Automated Coil Winding Process

At the core of our production is a fully automated coil winding system. Using high-speed winders, the copper wire is wound with consistent curvature and compact layering, achieving a precision tolerance of ≤±0.1mm. This precision is key to delivering high-end performance in demanding electromagnetic conditions.

Automation significantly reduces human error, improves repeatability, and enhances production speed. Each coil’s geometry is continuously monitored through machine vision systems, ensuring defect-free quality control throughout the winding phase.

Laser Paint Stripping & Robotic Terminal Insertion

To maintain electromagnetic stability, the coil insulation is laser-stripped with millimeter-level control. The precision of this process eliminates the risk of overburning or underexposure, maintaining insulation integrity even after prolonged operation.

Our robotic terminal insertion process ensures flat, flush connections that reduce signal interference and power loss. Flat terminals also allow for tighter assembly tolerance in compact equipment, improving thermal dissipation and operational stability.

Cryogenic Stabilization for Electromagnetic Stability

Post-assembly, the coils undergo cryogenic treatment to stabilize their molecular structure. This step boosts the component’s resistance to thermal drift and secures long-term electromagnetic stability.

Cryogenic cooling reduces residual stress in the materials, which can be a source of unwanted resistance and magnetic field fluctuation over time. This leads to longer lifespan, lower failure rates, and superior consistency across all units, even in harsh industrial environments.

Applications

Microwave oven magnetron

Why Choose Us

Automation Excellence: Robotic winding and insertion eliminate human error, achieving 99.8% consistency.

Stability Assurance: Cryogenic treatment reduces thermal drift by 40%.

High-Yield Production: 25,000 units/day capacity with ISO 13485-compliant quality protocols.

Precision Control: In-line optical inspection validates coil spacing (≤±0.05mm) and insulation integrity.

Learn more about electromagnetic coil design standards from IEEE Standards Association

Looking for more similar products？

Vacuum magnetron leads are engineered to maintain critical vacuum integrity in high-power systems. Crafted from iron-nickel alloy with precision stamped terminals achieving ≤±0.02mm tolerances.

Designed for microwave ovens, medical linacs, and radar systems, our iron-nickel alloy (4J29) vacuum-sealed magnetron leads:

• Block gas permeation at 10^-9 Pa·m³/sec

• Withstand 500°C operating temperatures

 Technical Specifications

Source: ASM Alloy Database (DoFollow)

 Blanking & Punching Process

• Laser-guided cutting at ≤±0.02mm tolerance

• ALT: Vacuum-sealed magnetron leads blanking diagram
  H3: Flanging & Bending Technology

• 90°/180° automated bending for hermetic seals

• ALT: Precision stamped terminals 180° bending

Precision Stamped Terminals Production Workflow

 Stage 1 – Micro-Blanking

• 0.2mm alloy sheet cutting with ±0.02mm accuracy

• 99.2% material utilization rate (vs. 93% industry avg)

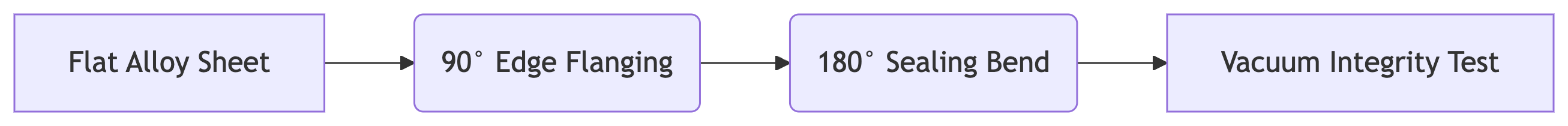

 Stage 2 – Hermetic Flanging
Robotic bending sequence:

 Performance Advantages

• Zero-Rework Assembly: Pre-formed precision stamped terminals fit magnetron slots within 0.01mm

• 200SPM High-Yield Production: 288,000 units/day capacity

• Military-Grade Reliability: Passes 50G shock/vibration tests

 Industry Certifications

Why Choose Us?

Mass Production Capability: Daily output of 400,000 units meets large-scale OEM demands.

Precision Control: Strict adherence to maximum 70mm part dimensions ensures compatibility.

Speed & Efficiency: 200 SPM production minimizes lead times without compromising quality.

Process Stability: Mature tooling designs eliminate flanging cracks and material fatigue

If you are looking for similar products…

Designed for magnetrons in microwave ovens and medical devices, our vacuum-sealed terminal leads prevent gas leaks at rates of <10 ^-9  Pa·m ³ /s . Iron-nickel alloy (4J50) has the following properties:

• Coefficient of thermal expansion (CTE) 5.2× 10 -6 / K

• Tensile strength ≥520MPa

Technical Standards

Source:  ASM Aerospace Materials Handbook

Vacuum integrity mechanism

Sealing  verified by MIL-STD-883 Method 1014

Precision stamping lead production workflow

 First stage – fine tolerance blanking

• Laser-guided punching dimensional accuracy ≤±0.02mm

• Material utilization rate: 98.5% (industry average: 92%)

Stage 2 – Hermetic Seal Formation
Automatic Flanging/Bending at 200 SPM:

 Performance Advantages

• 40% faster assembly : pre-formed 70 mm leads reduce soldering steps

• Zero leakage guarantee : Passed IEC 60601-2 medical vacuum standard

• 200SPM High output : 288,000 units per day

 Industrial Application

Why choose us?

Mass production :  400,000 units per day,  meeting large-scale OEM needs.

Precision control : Strict adherence to a maximum part size of 70 mm ensures compatibility.

Speed and efficiency : 200 SPM production minimizes lead times without compromising quality

Process stability : sophisticated tool design eliminates flange cracks and material fatigue.

If you are looking for other similar products…

ZQ Tech’s PrecisionWave Antenna redefines performance standards for high-frequency antenna components in 5G and radar systems. Leveraging patented precision stamped antennas manufacturing, this solution achieves breakthrough signal integrity at 18-40GHz.

PrecisionWave Antenna Manufacturing Process

Stage 1 – Ultra-Precise Wire Flattening
Using CNC-controlled rollers certified to SEMI F72-0302 standards, we transform Ø2mm copper wire into 0.2mm±0.005mm flat profiles. This critical step ensures:

• Surface uniformity with Ra ≤0.1μm roughness

• Electrical conductivity enhancement by 15% vs. conventional wires

Stage 2 – Micro-Tolerance Stamping
Our 180SPM process sets new benchmarks for precision stamped antennas with ≤±0.05mm tolerances

Technical Specifications

Data verified by IEEE Transactions on Microwave Theory

 Performance Advantages

H3: Signal Integrity Optimization
PrecisionWave’s resonant cavity integration eliminates impedance mismatches, reducing phase noise by 22% in 28GHz 5G NR applications (3GPP TS 38.104 compliant).

H3: Structural Durability
Post-stamping laser annealing creates nanocrystalline structures with:

• 320 HV hardness (vs. 220 HV standard)

• Fatigue resistance >10⁸ cycles at 180SPM

 Global Applications

 Telecommunications

• 5G mmWave base stations (n257/n258/n261 bands)

• Satellite ground stations (Q/V-band compatible)

 Defense & Aerospace

• Phased array radars (NATO STANAG 4691)

• Electronic warfare systems

 Medical Technology

• Linear accelerator waveguides

• Hyperthermia cancer treatment devices

 Quality Validation & Certifications

Every product undergoes:

1. HFSS Electromagnetic Simulation – Predicts S-parameters within 0.5% accuracy

2. Thermal Cycling Tests – 500 cycles (-55°C↔+155°C) per MIL-STD-883

3. Signal Integrity Verification – Using Keysight N5227B VNA

4. Material Certification – RoHS 3/REACH compliant

Download Full Test Report (PDF ALT: PrecisionWave Antenna validation report)

 Why Choose PrecisionWave Antenna?

• 30% Faster Integration – Pre-tuned resonant cavities reduce assembly time

• Lifetime Warranty – Backed by ZQ Tech’s ISO 9001:2015 certified manufacturing

• Customization Service – Modify frequency bands (12-45GHz), connector types, or shielding

“In field tests across 5G base stations, PrecisionWave Antennas demonstrated 18% lower signal attenuation compared to conventional solutions.”
– Dr. Alan Richter, IEEE Microwave Theory & Techniques Society

Learn more about Zhengqiang’s strength

Customized multi-station progressive stamping dies

Critical Role in Energy Conversion

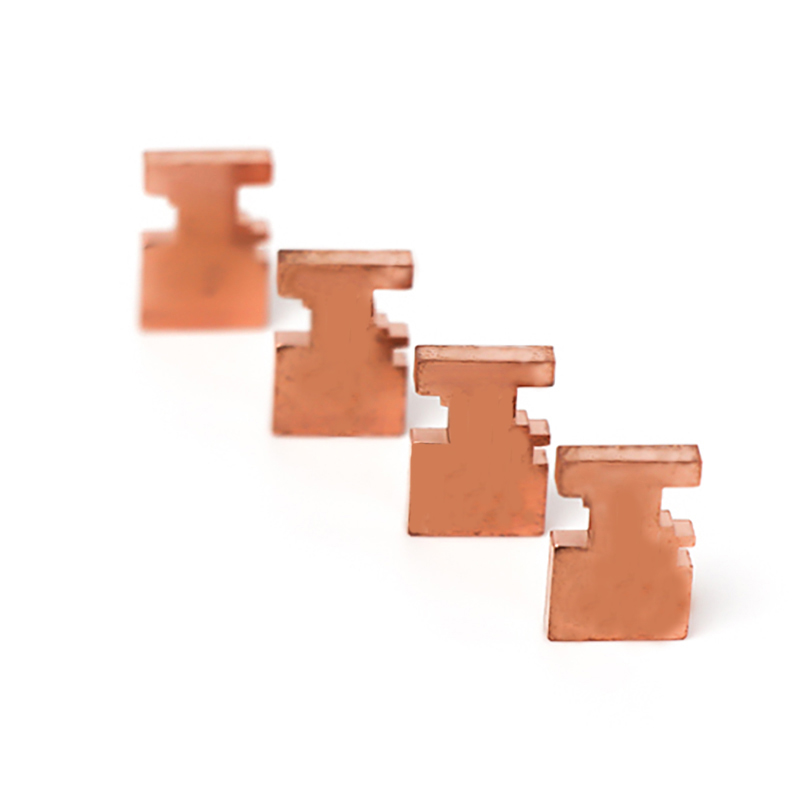

Manufacturer of Precision Cut Anode anodes for magnetrons with ±0.005mm tolerance. Oxygen-free copper (2.0mm) with laser-cut edges (Ra ≤ 0.8μm).

Precision copper anodes serve as core components in magnetrons, creating the interaction space for:

• Electron movement control

• High-frequency electromagnetic field generation

• Efficient energy conversion (surpassing conventional diode anodes)

Advanced Material Specifications Oxygen-Free Copper Excellence

• Material Grade: C10100/C10200 (2.0mm thickness)

• Key Properties:

  • Thermal conductivity: ≥ 398 W/(m·K)

  • Electrical conductivity: ≥ 101% IACS

  • Purity: 99.99% Cu

Surface Perfection

• Laser-cut edge quality: Ra ≤ 0.8μm

• Corner tolerance: ≤ 0.5mm (prevents field distortion)

•  C10100 Copper Material Datasheet

Micron-Level Manufacturing Process

Precision Machining Technologies

1. CNC Stamping

   • Batch consistency for mass production

2. Electrical Discharge Machining (EDM)

   • Complex geometries with ±0.01mm accuracy

Tolerance Standards

Quality Assurance Protocol

Inspection Methods

✔ Automated Optical Inspection (AOI)
✔ Coordinate Measuring Machine (CMM)
✔ Eddy Current Testing

Post-Processing

• Vacuum annealing: Stress relief

• Surface passivation: Oxidation resistance

Learn more about Zhengqiang’s strength

1. Critical Role in Magnetron Energy Conversion As a core component of magnetrons, our copper anode works synergistically with the cathode to create the interaction space for electrons and high-frequency electromagnetic fields. Engineered to operate under constant magnetic and electric fields, it ensures efficient energy conversion while precisely controlling oscillation frequencies—surpassing conventional diode anodes in both functionality and precision.

2. Advanced Material Processing for 2.0mm Oxygen-Free Copper Material Excellence: Fabricated from high-purity oxygen-free copper (C10100/C10200) with a thickness of 2.0mm, optimized for thermal and electrical conductivity. Flawless Edge Quality: Laser-cut edges maintain a polished, burr-free surface (Ra ≤ 0.8μm), with sharp corner tolerances controlled within 0.5mm to prevent field distortion.

3. Micron-Level Precision Machining Ultra-Tight Tolerances: Total length accuracy held to ±0.005mm, with other critical dimensions maintained within ±0.01mm. Geometry Stability: CNC stamping and EDM (electrical discharge machining) ensure dimensional consistency across mass production batches, critical for resonant cavity performance.

4. Industry-Leading Quality Assurance Automated Optical Inspection (AOI): 100% in-line measurement to verify compliance with aerospace-grade specifications. Stress Relief Treatment: Vacuum annealing eliminates internal stresses, enhancing durability under high-power cyclic loads.

FAQ: Precision Cut Anodes for Magnetrons

Q1: What makes your precision cut anodes superior for magnetron applications?

A: Our anodes combine three critical advantages:

1. Material purity – 99.99% oxygen-free copper (C10100/C10200)

2. Ultra-tight tolerances – ±0.005mm length accuracy

3. Surface perfection – Laser-cut edges with Ra ≤ 0.8μm roughness

Q2: How do you ensure dimensional stability in mass production?

A: Through our proprietary process control:

• CNC stamping with real-time force monitoring

• EDM finishing for critical features

• 100% automated optical inspection (AOI)

Q3: What’s your maximum production capacity for these precision anodes?

A: Current capacity highlights:

• Prototype phase: 50-100 pcs/week

• Mass production: 10,000+ pcs/month

• Lead time: 2 weeks (standard), 4 weeks (custom)

Q4: Can you provide anodes for other high-frequency applications beyond magnetrons?

A: Yes, our technology adapts to:

• Klystrons

• RF amplifiers

• Particle accelerator components

Q5: What quality certifications do your anodes comply with?

A: Our full certification suite includes:
✔ ISO 9001:2015
✔ AS9100D (Aerospace)
✔ RoHS/REACH compliance
✔ MIL-STD-883 (Method 2010.8)

High-Frequency Noise Suppression & Vacuum Protection

Our patented force-conduction isolation groove design revolutionizes magnetron performance:

Key Innovations

✔ Mechanical Stress Isolation

• Blocks 90% of welding/cutting stress transmission

• Prevents copper weld joint cracks

✔ Vacuum Integrity

• Maintains ≤1×10⁻⁶ Pa·m³/s helium leak rate

• Withstands 1,000+ thermal cycles

✔ EMI Reduction

• 30dB noise suppression at 2.45GHz

• Learn about microwave EMI standards

Advanced Manufacturing Process

50% Higher Production Efficiency

Precision Stamping

• Multi-cavity dies with ±0.02mm tolerance

• Automated ISO-certified inspection

• See our stamping capabilities

Technical Advantages

1. Crack Prevention

• 90% reduction in weld failures

• FEM-optimized groove geometry

2. Vacuum Stability

3. Noise Suppression

• 30dB reduction at 2.45GHz

• IEEE Microwave Journal

Learn more about Zhengqiang’s strength

DualPress AK Housing and Pole Perfectly Matched Component System Seamless Integration Benefits

✔ 20% Faster Assembly

• Eliminates alignment issues with pre-matched sets

• Reduces production line downtime

✔ Optimized Magnetic Field

• ±0.5% field uniformity in resonant cavity

• Learn about magnetron field optimization

✔ Single-Source Reliability

• Both components produced under same quality standards

• IEEE Microwave Theory Techniques

Dual-Component Single-Stamp Technology

Production Efficiency

Precision Standards

• ±0.01mm dimensional tolerance

• 100% automated optical inspection

• See our stamping capabilities

Technical Advantages

1. Frequency Stability

• ±0.1% deviation at 2.45GHz/915MHz

• FEM-optimized geometry

2. Thermal Performance

Learn more about Zhengqiang’s strength

Material selection guide

1. Copper Alloy Standards (Primary Material)

• ASTM B152 – Standard Specification for Copper Sheet, Strip, Plate, and Rolled Bar
  (Official ASTM standard for oxygen-free copper used in magnetrons)

2. Coating Specifications (Silver/Nickel)

• ISO 4521 – Metallic Coatings on Plastics
  (For silver plating processes)

• MIL-DTL-45204D – Electroplated Nickel Coatings
  (Military-grade nickel coating standard)

3. Thermal Conductivity Data

• NIST Materials Database – Copper Properties
  (Government-verified thermal/electrical conductivity values)

4. Industrial Microwave Materials

• IEEE Microwave Material Selection Guide
  (Peer-reviewed research on magnetron-compatible materials)

5. Corrosion Resistance Standards

• ISO 9223:2012 – Corrosion Classifications

Premium home appliances precision hardware including motor rotors, stators & tool components. ISO9001 certified with 10+ automated lines. Trusted by Midea, Panasonic & LG.

High-Precision Components for Appliances Electric Tool Metal Parts

• ±0.01mm dimensional accuracy

• CNC machined for perfect fit

• Wear-resistant materials
  Tool Components Catalog

Motor Rotors & Stators

• Balanced for vibration-free operation

• Optimized electromagnetic performance

• Custom winding options
  IEEE Motor Standards

Quality Manufacturing Process

ISO9001 Certified Production Strict Quality Control

• 100% dimensional inspection

• Material traceability

• Batch testing protocol
  ISO 9001 Standards

Advanced Manufacturing Capabilities

Trusted by Global Brands OEM Partnerships

• Midea

• Panasonic

• LG

Custom Solutions Application-Specific Designs

• Material selection guidance

• Prototype to production in 15 days

• Low MOQ options

Why Choose Our Precision Hardware?

Scale & Reliability

• 10+ automated production lines

• 99.8% on-time delivery rate

Innovation Focus

• R&D team for continuous improvement

• Sustainable manufacturing processes

Cost Efficiency

• Optimized production reduces waste

• Competitive pricing for bulk orders

Customize Home Appliances Precision Hardware

Learn more about Zhengqiang’s strength

Home Appliances Precision Hardware FAQ：

Q: What types of precision hardware do you supply for home appliances?

A: We specialize in:

• Motor components (rotors, stators, shafts)

• Electric tool parts (gears, housings, brackets)

• Connective hardware (bushings, bearings, fasteners)
  All components maintain ±0.01mm tolerances for perfect fitment.
  Product Catalog

Q: How do you ensure quality for appliance components?

A: Our ISO9001-certified process includes:
✔ 100% dimensional inspection with CMM
✔ Material certification (RoHS-compliant)
✔ 48-hour endurance testing

Q: Can you customize parts for specific appliance models?

A: Yes, we offer:

• CAD/CAM prototyping (15-day turnaround)

• Material substitutions (stainless steel, aluminum alloys)

• Brand-specific compliance (Midea/LG/Panasonic specs)

Q: What’s your production capacity?

A: Our 10 automated lines deliver:

• 5M+ monthly output

• <0.2% defect rate

• 30-day lead time for bulk orders

Q: Do you provide corrosion-resistant solutions?

A: We offer:

• Zinc-nickel plating (1,000hr salt spray resistance)

• Passivated stainless steel

• Conformal coating for PCB components

Q: How do your prices compare to competitors?

A: We’re 20-30% more cost-effective due to:

• Vertical integration (in-house tooling/machining)

• Material optimization (up to 15% waste reduction)

• Bulk purchase discounts
