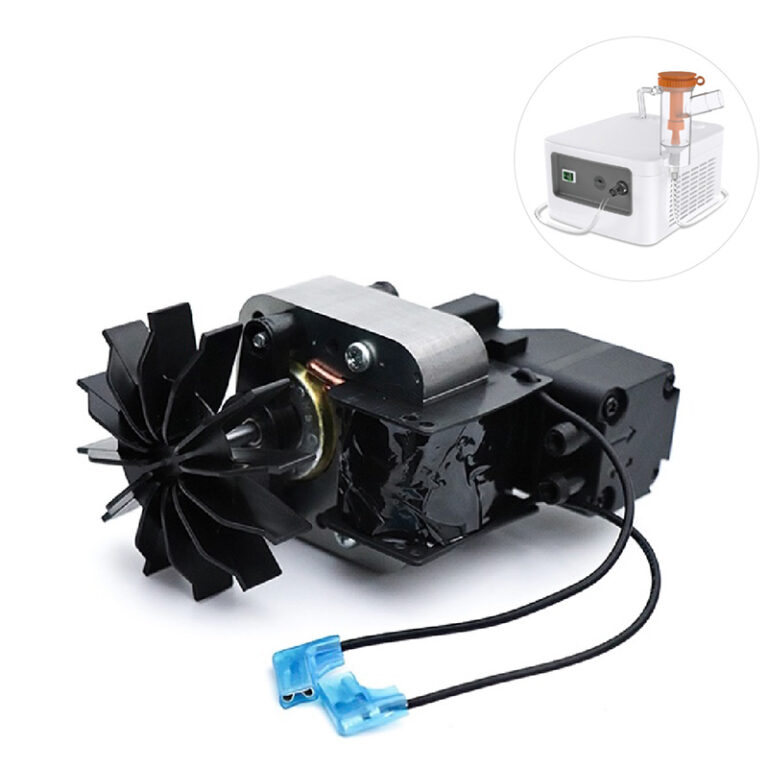

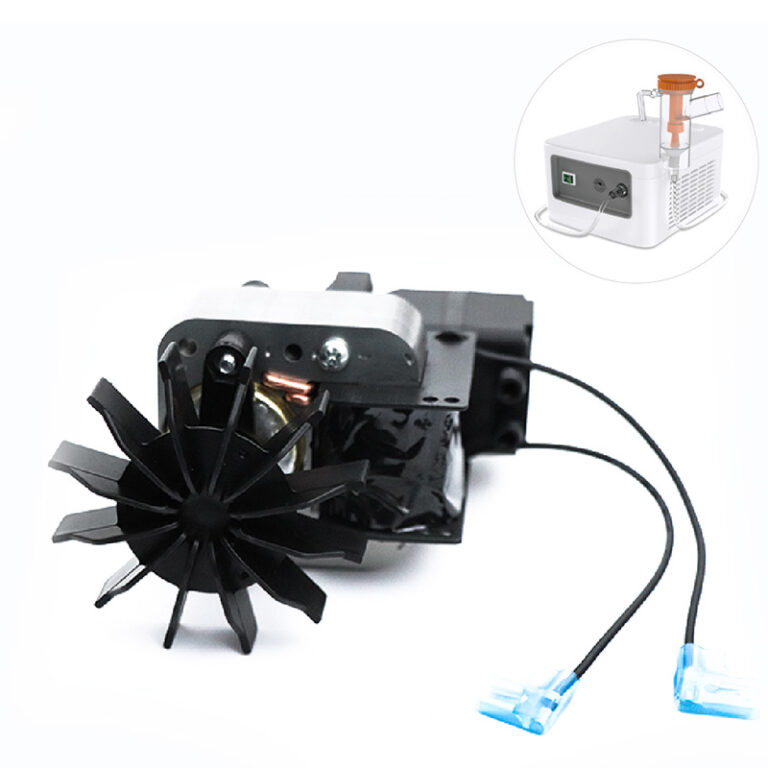

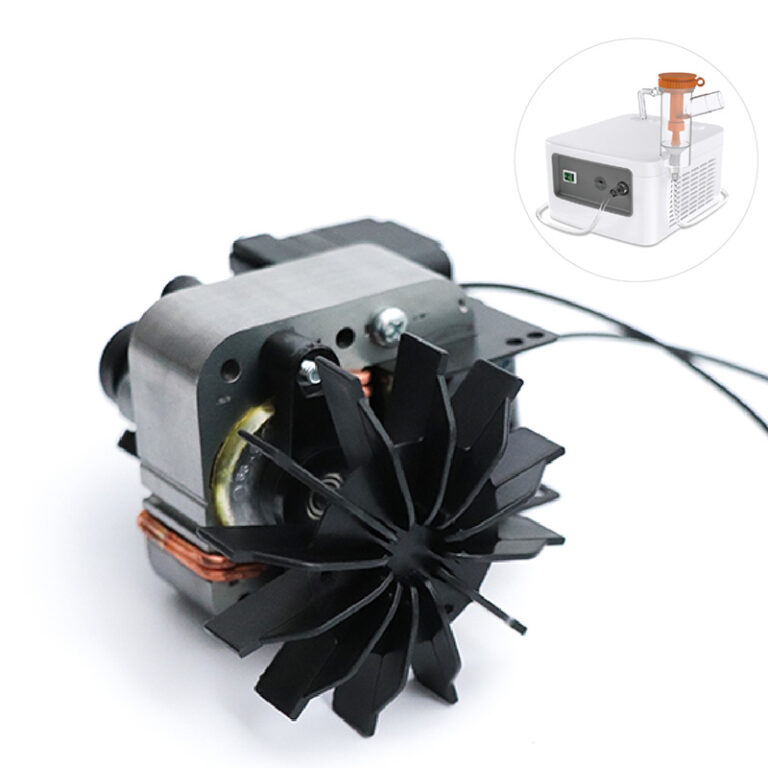

Air Pump Motor for Medical Nebulizer – Quiet & Durable Shaded Pole Motor

Our nebulizer motor features a high-efficiency shaded pole motor, designed for household and portable atomization devices. Known for its simple structure, quiet operation, and durability, it ensures smooth and consistent performance in medical nebulizers, humidifiers, and personal care devices. Compact and energy-efficient, it’s ideal for space-sensitive and low-noise applications, delivering reliable power for a superior user experience. In collaboration with the renowned brand AXD Electronic, our motor combines advanced technology with trusted quality.

Features:
100% Copper Wire: Motor working life up to 3000H
High Temperature Adhesive Tape:High temperature resistance, excellent insulation, strong adhesion, and chemical resistance
Independently developed design: More stable performance.
Reliable Stator Core: Branded silicon steel sheet, good magnetic conductivity, strong heat dissipation
Specifications:
Rated Voltage: AC110V-220V
Rated Frequency:50-60HZ
Current:≤0.7A
Power:≤65W
Speed:≥2700 RPM≥
Number of Poles:2
Insulation Class:B/H
Pressure Range:80-130 KPa
Air Flow Rate:≥8 L/min
Atomization Rate：≥0.2 ml/min
Noise Level：≤70 dB(A
Rotation Direction：Clockwise(Cw)
Particle Size Distribution(1-5um)：≥60%
Ambient Temperature：-10°C-40°C
Wire Specifications： Copper Wire,copper clad aluminum wire, Aluminum Wire

Application: Household Medical Nebulizer

Products details

High-Performance Air Pump Motor for Medical Nebulizer

Looking for a reliable and quiet Air Pump Motor for Medical Nebulizer? Our premium motor solution is designed specifically for household and portable medical nebulizers, offering consistent performance and low-noise operation. Featuring a high-efficiency shaded pole motor, this product delivers stable air flow and superior atomization, enhancing treatment effectiveness for respiratory care.

Engineered for Precision in Medical Applications

The motor’s independently developed structure ensures long-term stability, with 100% copper wire extending motor life up to 3000 hours. A high-temperature adhesive tape, branded silicon steel stator core, and precision winding provide robust durability and resistance to thermal stress. The Air Pump Motor for Medical Nebulizer maintains smooth airflow at ≥8 L/min, with a particle size distribution optimized for effective medication delivery.

Compact, Low-Noise, and Energy-Efficient Design

Perfect for space-sensitive and low-noise applications, this motor operates under 70 dB(A), ensuring user comfort. With power consumption ≤65W and AC voltage compatibility of 110V–220V, it’s the ideal component for nebulizers, humidifiers, and personal medical care devices.

For those designing or upgrading medical-grade nebulizers, this motor’s specifications and quiet operation meet both technical and patient comfort requirements.
