BL4812-078A Compact 12W DC Brushless Motor for Space-Constrained Applications - Guangdong Zhengqiang Technology Group
Product Description：

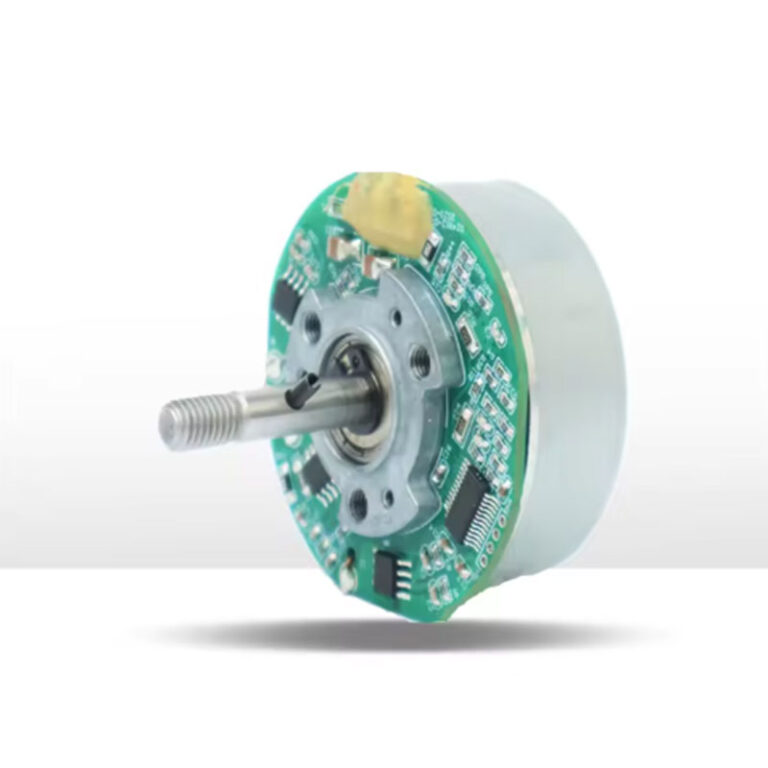

The BL4812-078A is an ultra-compact 48mm frame brushless DC motor designed for applications where space optimization is critical. With its small diameter and efficient performance, this motor is ideal for compact household appliances and smart home devices requiring reliable airflow in limited spaces.
The BL4812-078A is an ultra-compact 48mm frame brushless DC motor designed for applications where space optimization is critical. With its small diameter and efficient performance, this motor is ideal for compact household appliances and smart home devices requiring reliable airflow in limited spaces.
Products details
Key Specifications
Model: BL4812-078A
Rated Voltage: 12V DC (10.8-13.2V range)
Rated Power: 12W
No-load Speed: 1800 RPM
Rated Torque: 26 mN.m
No-load Current: 0.5A
Peak Current: 2A
Phase Number: 3
Pole Number: 10
Rotation Direction: CW (Clockwise)

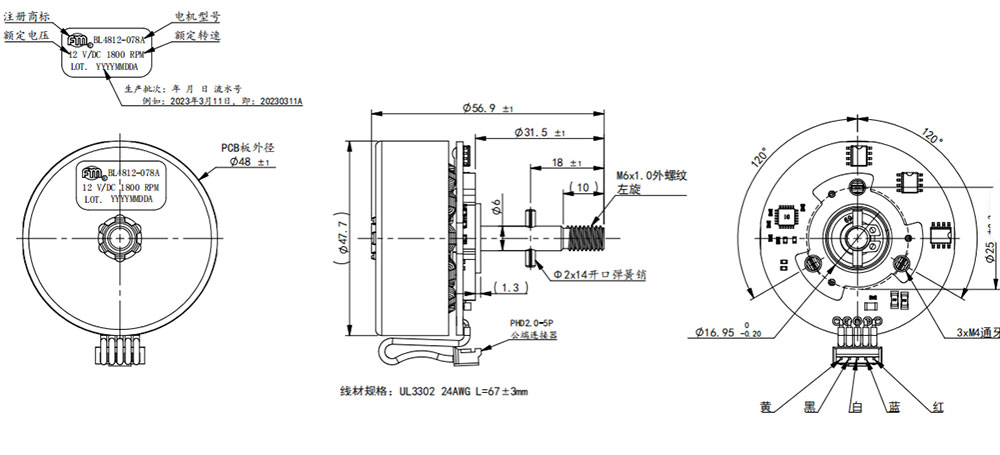

Frame Size: 47.7mm diameter
Length: 56.9mm
Weight: 0.286kg
Special Features
Ultra-compact design for space-constrained applications
High-speed operation up to 1800 RPM
Low noise performance
Clockwise rotation as standard
Lightweight construction for easy integration
Applications
Compact household fans
Smart home appliances
Stand fans and portable devices
Electronic cooling systems
Mini ventilation equipment
