Product Description：

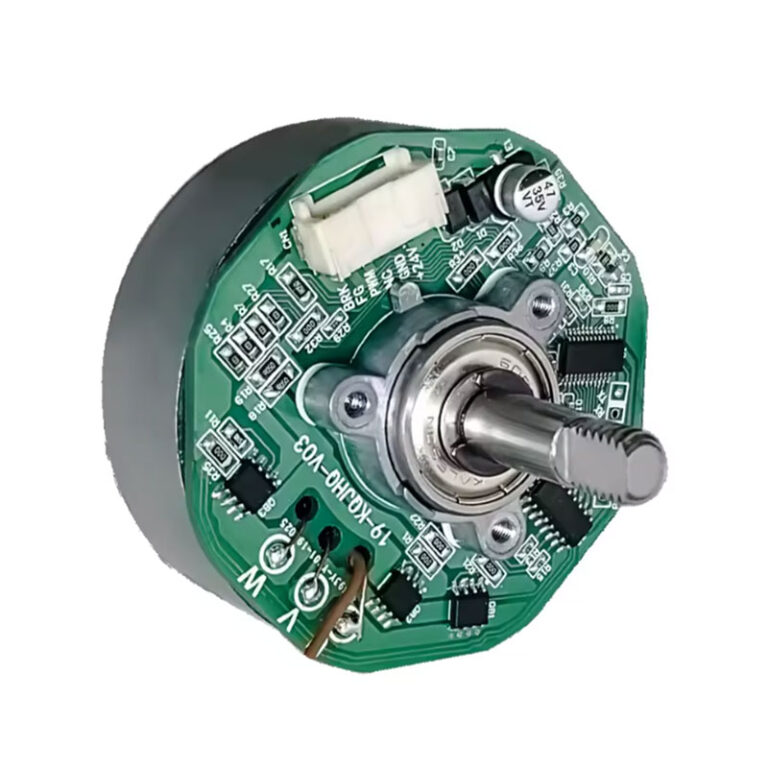

The BL6110-006C is a robust 61mm frame brushless DC motor designed for demanding applications requiring high torque and reliable performance. With a wide speed range and excellent power density, this motor is suitable for various industrial and commercial ventilation applications.
The BL6110-006C is a robust 61mm frame brushless DC motor designed for demanding applications requiring high torque and reliable performance. With a wide speed range and excellent power density, this motor is suitable for various industrial and commercial ventilation applications.
Products details
Key Specifications
Model: BL6110-006C
Rated Voltage: 24V DC (22.8-25.2V range)
Rated Power: 33W
Speed Range: 200-2400 RPM
Rated Torque: 150 mN.m
Noise Level: ≤45 dB(A)
Load Current: 1.8A
No-load Current: <0.3A
Phase Number: 3
Pole Number: 10

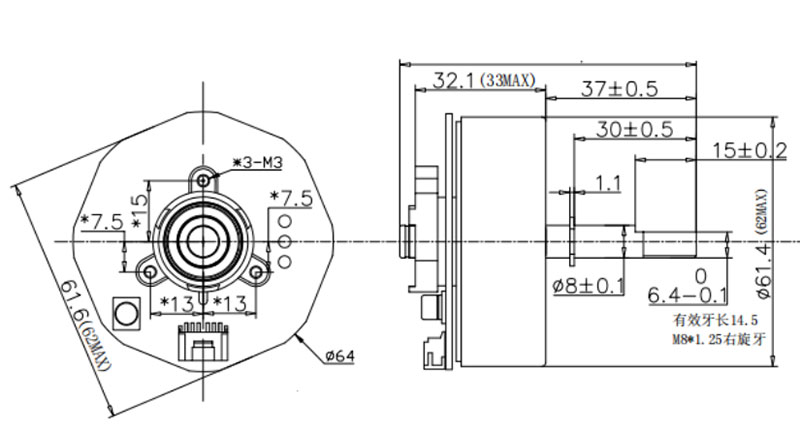

Frame Size: 61.4mm diameter
Length: 63.6mm
Weight: 0.286kg
Special Features
Wide speed range for versatile applications
High torque output for demanding loads
Sensorless drive for reduced complexity
Compact design with high power density
Reliable performance in various environments
Applications
Air purifiers and cleaners
Industrial ventilation systems
Dehumidifiers
Solar powered equipment
Commercial fan applications
