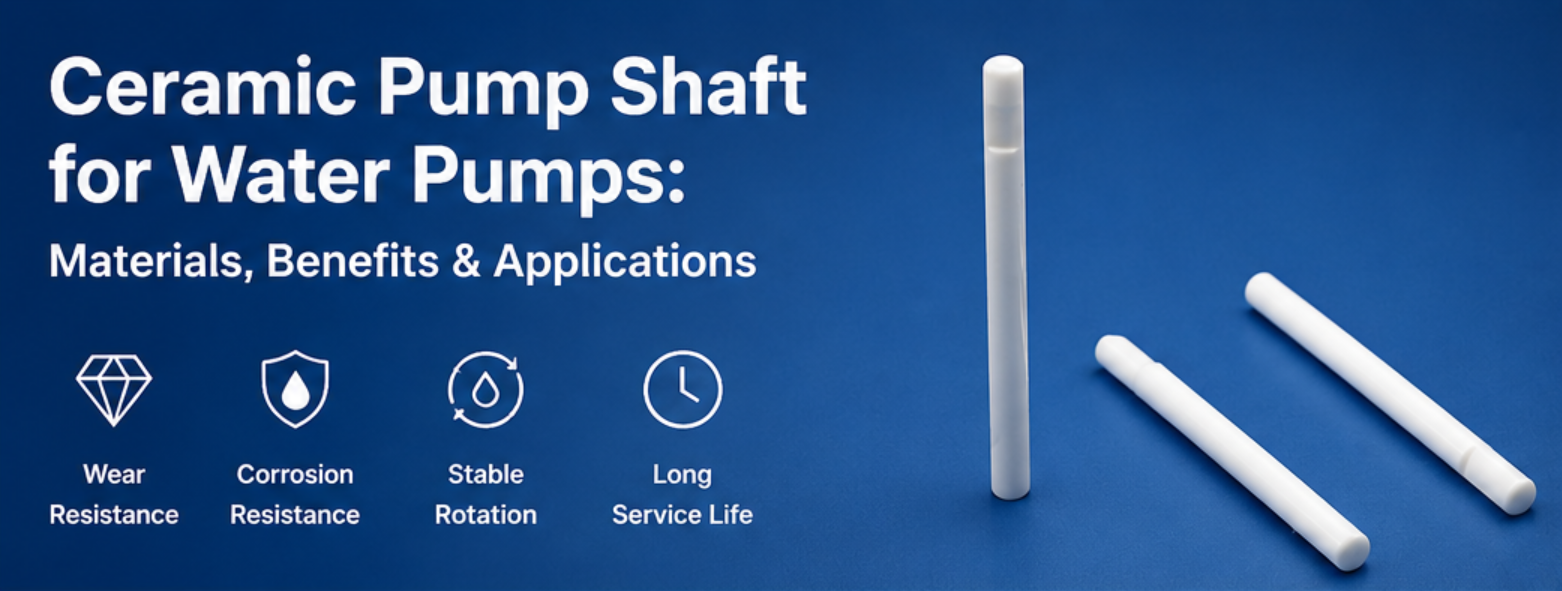

What Is a Ceramic Pump Shaft?

A ceramic pump shaft is a precision ceramic component used in rotating pump systems. Compared with conventional metal shafts, ceramic shafts can provide excellent wear resistance, corrosion resistance and dimensional stability.

In compact water pumps, the shaft is a critical rotating component. It works with the impeller and bearing or bushing system to maintain stable rotation during operation.

Ceramic shafts are particularly suitable for applications where the shaft is exposed to water, moisture, continuous rotation or long operating cycles.

Common applications include water pumps used in coffee machines, water purifiers, circulation systems and other compact fluid-handling equipment.

---

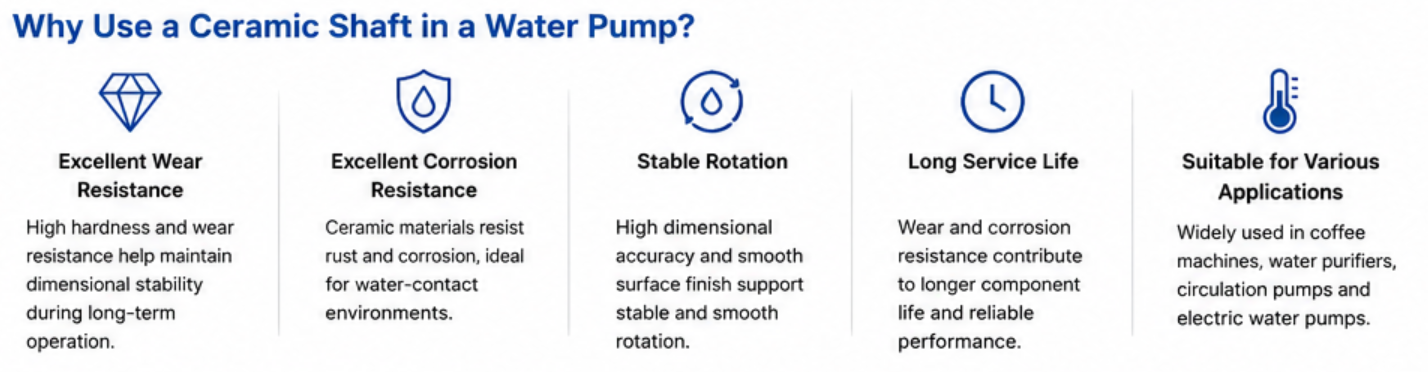

Why Use a Ceramic Shaft in a Water Pump?

Water pumps often operate continuously or repeatedly, making wear and corrosion important considerations when selecting shaft materials.

A properly designed ceramic shaft for water pump applications can provide several advantages.

Excellent Wear Resistance

Technical ceramic materials have high hardness and excellent wear resistance.

During pump operation, the shaft continuously rotates against a mating component. This creates friction and wear over time.

A ceramic shaft can maintain its surface condition and dimensional stability during long-term operation, helping support reliable pump performance.

Excellent Corrosion Resistance

Water-contact components may be exposed to moisture, dissolved minerals and different fluid conditions.

Unlike many metal materials, technical ceramics do not rust and generally provide excellent resistance to corrosion.

This makes ceramic shafts suitable for applications where long-term contact with water is an important consideration.

Stable Rotation

The dimensional accuracy and surface finish of a pump shaft directly affect the performance of the rotating assembly.

A precision-machined ceramic shaft can provide a smooth and stable surface for the mating components.

This can help reduce unwanted vibration and support stable rotation during pump operation.

Long Service Life

Wear and corrosion can gradually affect conventional pump shafts.

By selecting an appropriate ceramic material and controlling the shaft dimensions and surface finish, manufacturers can improve component durability.

The actual service life depends on the pump speed, load, temperature, fluid conditions, material grade and overall pump design.

---

Ceramic Shaft vs. Stainless Steel Shaft

Stainless steel is widely used for pump shafts because it provides good mechanical strength and corrosion resistance.

However, ceramic materials can offer advantages in applications where wear resistance, corrosion resistance and long-term dimensional stability are particularly important.

The best material depends on the actual pump design and operating environment.

For compact water pumps requiring high wear resistance and stable long-term operation, a ceramic shaft can be a suitable engineering solution.

---

Which Ceramic Materials Are Used for Pump Shafts?

Different ceramic materials can be selected according to the application.

Alumina Ceramic Shaft

Alumina (Al₂O₃) is one of the most widely used technical ceramic materials.

It combines:

• High hardness
• Good mechanical strength
• Excellent electrical insulation
• Wear resistance
• Corrosion resistance
• Good thermal stability

Alumina ceramic shafts are suitable for applications where a balanced combination of mechanical, electrical and chemical properties is required.

Zirconia Ceramic Shaft

Zirconia (ZrO₂) provides high strength and fracture toughness compared with many traditional ceramic materials.

It is particularly useful when the application requires:

• High mechanical strength
• High fracture toughness
• Excellent wear resistance
• Corrosion resistance
• Stable dimensional performance

Zirconia ceramic shafts can therefore be considered for demanding rotating pump applications.

---

Applications of Ceramic Pump Shafts

Ceramic pump shafts are used in different types of compact pumps and fluid-handling equipment.

Coffee Machines

Coffee machines use compact pumps to move water through the system.

Because these pumps may operate repeatedly over a long period, the shaft needs to withstand continuous rotation and wear.

A zirconia ceramic shaft can provide wear resistance, corrosion resistance and stable rotation for demanding pump applications.

Water Purifiers

Water purification equipment contains components that operate in direct or indirect contact with water.

A ceramic shaft can provide excellent corrosion resistance and dimensional stability, making it suitable for compact water pump systems.

Electric Water Pumps

Electric water pumps are used in household appliances and various equipment.

The pump shaft needs to maintain accurate dimensions and stable rotation while operating at the required speed.

Custom ceramic shafts can be manufactured according to the pump structure and application requirements.

Circulation Pumps

Circulation pumps may operate continuously for extended periods.

In these applications, wear resistance and stable rotation are important factors when selecting shaft materials.

A precision ceramic shaft can help meet these requirements when properly matched with the pump’s bearing or bushing system.

---

How to Choose the Right Ceramic Pump Shaft

Selecting a ceramic pump shaft requires more than choosing a ceramic material.

The shaft should be designed according to the complete operating environment.

Important factors include:

Shaft Dimensions

The diameter, length, step dimensions and other features must match the pump assembly.

Dimensional Tolerance

The shaft must maintain the required dimensional accuracy to ensure proper assembly and stable rotation.

Surface Finish

Surface finish affects friction and interaction between the shaft and mating components.

Operating Speed

Higher rotational speeds can increase the requirements for dimensional accuracy, surface quality and mechanical stability.

Operating Temperature

Temperature can affect material performance and the overall pump design.

Fluid Environment

The type of fluid and operating conditions should be considered when selecting the ceramic material.

Ceramic Material

Alumina and zirconia offer different combinations of strength, toughness, hardness and other properties.

Material selection should therefore be based on the actual application rather than on material name alone.

---

Custom Ceramic Shaft for Water Pump Applications

Standard shafts may not meet the dimensional or performance requirements of a specific pump.

Custom ceramic shafts for water pumps can be manufactured according to customer drawings, samples and specifications.

Typical customization requirements include:

• Shaft diameter
• Shaft length
• Step dimensions
• End geometry
• Surface finish
• Dimensional tolerances
• Ceramic material
• Application environment

Our ceramic components can be produced through controlled forming, sintering, precision grinding and inspection processes.

For OEM pump applications, we work according to the customer’s drawings and technical requirements to develop suitable ceramic shaft components.

---

Why Choose Zirconia Ceramic Shafts?

For applications requiring higher mechanical performance, zirconia is an attractive ceramic material.

Compared with alumina, zirconia generally provides higher fracture toughness and mechanical strength.

This makes zirconia suitable for rotating components where mechanical reliability and wear resistance are important.

For water pumps used in coffee machines, water purifiers and other compact appliances, zirconia ceramic shafts can provide a combination of:

• High hardness
• Excellent wear resistance
• Corrosion resistance
• Stable rotation
• High mechanical strength
• Long service life

The final material should always be selected according to the actual operating conditions and pump design.

---

Custom Ceramic Pump Shaft Manufacturer

We manufacture customized ceramic shafts for pump and rotating applications.

Our products include:

• Zirconia ceramic shafts
• Alumina ceramic shafts
• Ceramic pump shafts
• Ceramic shafts for water pumps
• Precision ceramic shafts
• Custom ceramic components

We support OEM applications based on customer drawings, samples and dimensional specifications.

If you are developing a water pump for a coffee machine, water purifier, circulation system or other equipment, our team can help evaluate the appropriate ceramic material and shaft design.

---

Conclusion

A ceramic pump shaft can provide excellent wear resistance, corrosion resistance and dimensional stability for demanding water pump applications.

Compared with conventional metal shafts, ceramic shafts can be particularly useful when long-term wear, water exposure and stable rotation are important considerations.

Alumina and zirconia are two important ceramic options, with zirconia offering higher strength and fracture toughness for applications requiring greater mechanical performance.

For coffee machines, water purifiers, electric water pumps and circulation systems, a properly designed ceramic shaft can provide a reliable solution for long-term pump operation.

Need a custom ceramic pump shaft?

Send us your drawing, sample or technical requirements to discuss a ceramic shaft solution for your application.
