High-Performance Magnetron Components

A magnetron is a crucial vacuum tube device used to generate microwave energy through high-frequency oscillation. At Zhengqiang Group, we specialize in manufacturing high-precision microwave magnetron components for applications in industrial and commercial equipment. Our expertise in deep drawing and high-speed punching enables the production of reliable, efficient magnetron structures.

⚙️ What Is a Microwave Magnetron?

The microwave magnetron consists of a central cathode and a cylindrical anode housed in a vacuum tube. Under the interaction of constant electric and magnetic fields, electrons spiral around the cathode to produce microwave-frequency oscillations. This oscillation is critical to the performance of microwave generators in appliances and industrial systems.

You can learn more about our core technologies on our Precision Component Services page.

---

🛠️ Core Magnetron Structural Components

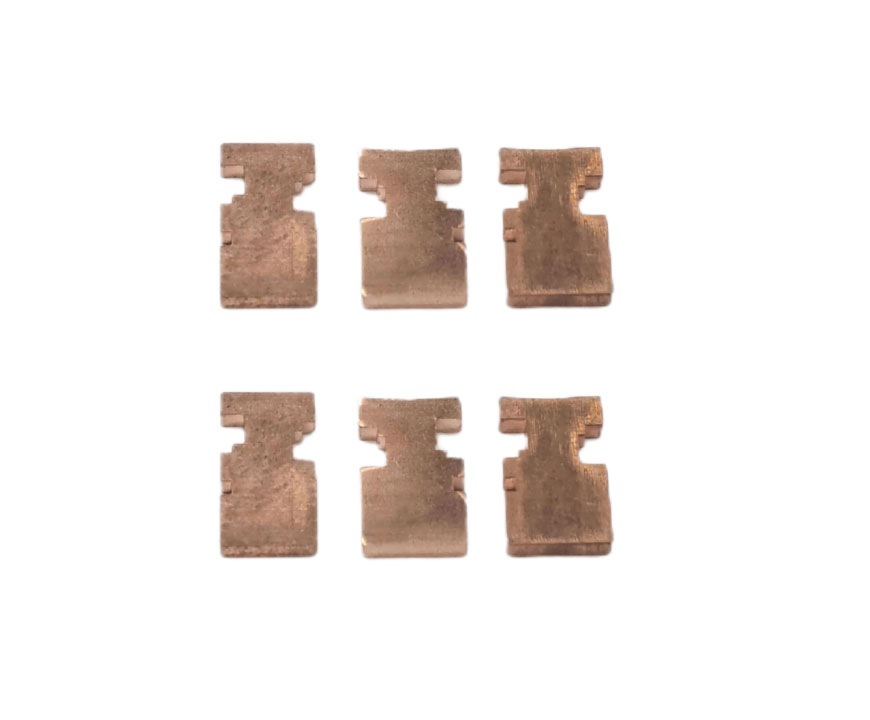

✅Magnetron Anode Design and Advantages



The anode plays a decisive role in electron behavior and the final oscillation frequency of the magnetron. Zhengqiang uses oxygen-free copper (≥2.0mm) and tight tolerance control to achieve unmatched consistency:

• Tolerance control: ±0.005mm standard, advanced to ±0.0035mm

• Edge radius control: collapse angle < 0.3mm

• Equipment: 100+ punch machines (25–300 tons), 20+ precision high-speed units

• Output: 120,000 pieces/day/set

Our ability to maintain dimensional stability ensures the reliability of microwave energy generation.

Explore our metal stamping capabilities for similar precision applications.

---

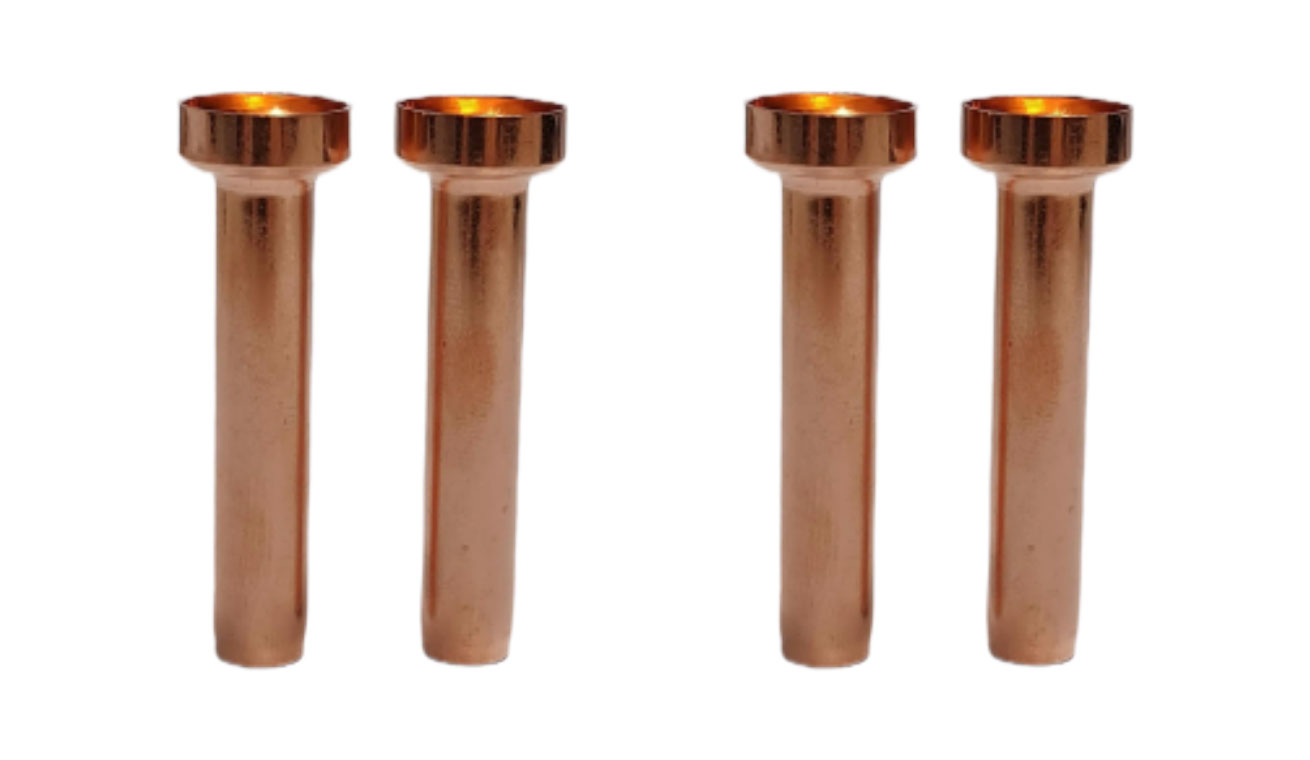

✅Magnetron Exhaust Pipe: Technical Excellence

The exhaust pipe is responsible for isolating high-frequency noise and maintaining vacuum integrity. Key technical features include:

• Deep and long-drawing design (49.3mm length, 0.5mm wall thickness)

• Anti-crack force-conducting isolation groove

• Dual-peak tensile load curve optimization

• Rotary-cut leveling for tight diameter tolerance (≤0.05mm)

Technical Benefits:

• Cold work hardening solutions prevent cracking

• Innovative forming boosts production from 1/1 to 1/2 yield

• Daily stable output: 20,000 pcs/shift

---

🔍 Why Choose Zhengqiang for Magnetron Manufacturing?

🏆 Industry-Leading Expertise

With 30+ years of experience, we are experts in tackling deep-drawing and ultra-precise forming challenges in magnetron and microwave components manufacturing.

🌍 Global-Ready Capacity

Our facilities enable high-volume production with rapid lead times. Explore our About Us page to discover our scale and vision.

🔗 External Reference:

Learn more about magnetrons from Wikipedia – Magnetron

---

🤝 Partner with Zhengqiang Group for Magnetron Solutions

Looking for a dependable magnetron components supplier? Zhengqiang provides custom R&D, consistent quality, and scalable production to meet your needs.

📩 Contact Us today for detailed specifications, samples, or technical consultation.
