A Shaded Pole Motor Manufacturer provides compact AC motor solutions for fans, blowers, ventilation equipment, household appliances, HVAC systems, and other low-power applications. With simple construction and straightforward AC operation, shaded pole motors remain a practical option for manufacturers looking for reliable and economical motor solutions.

For OEM and ODM customers, choosing the right Shaded Pole Motor Manufacturer is important because motor performance directly affects the efficiency, noise level, reliability, and operating life of the finished product. Voltage, frequency, power, speed, torque, shaft dimensions, mounting configuration, and operating environment should all be considered during the development process.

ZhengQiang Technology provides customized motor manufacturing and OEM/ODM support for customers requiring different AC and DC motor solutions. https://www.zqatech.com/

What Is a Shaded Pole Motor?

A shaded pole motor is a type of single-phase AC induction motor that uses a shading ring around part of the stator pole to create the magnetic phase difference required for rotation.

This relatively simple structure makes the motor suitable for applications where compact dimensions, straightforward electrical integration, and economical manufacturing are important.

A typical shaded pole motor includes:

• Stator core
• Copper shading ring
• Rotor
• Shaft
• Bearings
• Motor housing
• Windings
• Electrical terminals

The specific configuration depends on the required voltage, power, speed, dimensions, and application.

For this reason, an experienced Shaded Pole Motor Manufacturer can help customers determine the appropriate motor configuration based on the final equipment requirements.

How Does a Shaded Pole Motor Work?

Stator and Magnetic Field

The stator contains the motor windings and generates the magnetic field when connected to an AC power supply.

The pole is divided into shaded and unshaded sections. A conductive copper ring is positioned around the shaded section.

Shading Ring Operation

The shading ring produces an induced current when the alternating magnetic field changes.

This causes the magnetic flux in the shaded portion to lag behind the unshaded portion. The resulting magnetic movement provides the starting force required to rotate the rotor.

Rotor Movement

The rotor reacts to the changing magnetic field and begins rotating.

Once rotation is established, the motor continues to operate according to its electrical and mechanical design.

This simple operating principle is one reason why many manufacturers continue to use shaded pole technology in small AC motor applications.

Advantages of Working With a Shaded Pole Motor Manufacturer

Simple Motor Construction

A major advantage of this motor technology is its relatively simple construction.

Unlike some other AC motor technologies, the basic design does not require a separate starting capacitor or complicated electronic control system.

A professional Shaded Pole Motor Manufacturer can optimize the stator, rotor, winding, shading ring, and housing according to the intended application.

Compact Dimensions

Small shaded pole motors can be designed for products where installation space is limited.

Compact motor dimensions are particularly useful in:

• Small fans
• Blowers
• Ventilation equipment
• Household appliances
• Air circulation systems
• Cooling equipment

Economical Production

The relatively simple structure can help reduce manufacturing complexity and production costs.

For high-volume OEM applications, this can be an important consideration when selecting a motor technology.

Easy AC Integration

The motor can be designed for specific AC voltage and frequency requirements, allowing manufacturers to integrate it into existing electrical systems.

Reliable Operation

When properly designed and matched to the application, a shaded pole motor can provide stable operation for extended periods.

The actual service life depends on factors such as load, temperature, bearings, winding design, operating cycle, and manufacturing quality.

Applications of Shaded Pole Motors

A Shaded Pole Motor Manufacturer can develop products for a wide variety of low-power AC applications.

Fan Motors

Fan applications are among the most common uses for shaded pole motors.

A fan motor must provide stable rotational speed while maintaining acceptable noise, temperature, and power consumption.

Small AC fan motors can be used in:

• Electric fans
• Cooling fans
• Ventilation fans
• Exhaust fans
• Small blowers
• Air circulation equipment

HVAC Equipment

HVAC systems frequently require compact motors for fans, blowers, dampers, and air circulation mechanisms.

A suitable motor should be selected according to airflow, static pressure, operating temperature, duty cycle, and installation requirements.

A knowledgeable Shaded Pole Motor Manufacturer can customize the motor around these requirements.

Household Appliances

Small AC motors are used in numerous household and consumer products.

Potential applications include:

• Air circulation products
• Small cooling equipment
• Ventilation appliances
• Kitchen equipment
• Bathroom fans
• Household blowers

The motor design can be adjusted according to the available installation space and required electrical specifications.

Commercial Equipment

Compact AC motors can also be used in office and commercial equipment requiring low-power mechanical rotation or airflow.

Noise, reliability, and continuous operation may become particularly important in these applications.

Key Specifications to Discuss With a Shaded Pole Motor Manufacturer

Before ordering a motor, OEM buyers should define the key technical parameters.

Rated Voltage

Voltage must match the electrical system of the final equipment.

Different target markets may require different voltage configurations.

Operating Frequency

AC frequency affects motor operating characteristics.

Common configurations include 50 Hz and 60 Hz designs.

Rated Power

Motor power must be matched to the actual mechanical load.

An undersized motor may experience excessive temperature rise, while an oversized motor can unnecessarily increase product cost and energy consumption.

Speed

Motor speed is especially important for fan and blower applications because rotational speed affects airflow and system performance.

Torque

The required torque depends on the mechanical load and operating conditions.

Starting and running requirements should be evaluated during the design stage.

Dimensions

The motor must fit the available installation space.

Important dimensions include:

• Motor diameter
• Motor length
• Shaft diameter
• Shaft length
• Mounting holes
• Mounting bracket
• Terminal position

Providing detailed drawings to the Shaded Pole Motor Manufacturer can make the development process more efficient.

Customization Options

A professional Shaded Pole Motor Manufacturer should be able to support customization for OEM applications.

Electrical Customization

Possible electrical adjustments include:

• Voltage
• Frequency
• Power
• Current
• Speed
• Winding configuration

Mechanical Customization

Mechanical specifications can also be modified according to the equipment.

Examples include:

• Shaft diameter
• Shaft length
• Housing dimensions
• Mounting holes
• Brackets
• Rotor configuration

Cable and Connector Customization

OEM customers may require different cable lengths, connectors, terminal configurations, or wire directions.

These details can be incorporated into the production design to simplify final assembly.

Shaded Pole Motor vs. Other Motor Technologies

Different motor technologies have different advantages.

Shaded Pole Motor vs. BLDC Motor

BLDC motors use electronic commutation and can provide high efficiency, precise speed control, and long operating life.

Shaded pole motors generally have simpler construction and electrical integration.

For basic low-power fans and simple rotating equipment, a shaded pole design may provide a practical and economical solution.

Shaded Pole Motor vs. Capacitor Motor

Capacitor motors use a capacitor to create a phase relationship between winding circuits.

Shaded pole motors use a conductive shading ring instead.

The choice depends on the required torque, efficiency, speed, cost, noise, and operating conditions.

Shaded Pole Motor vs. Synchronous Motor

Synchronous motors are designed for applications requiring synchronized operating speed.

Shaded pole motors are generally used for simpler applications where precise synchronous speed is not necessary.

A qualified Shaded Pole Motor Manufacturer can help customers compare different technologies based on the actual equipment requirements.

Manufacturing Process

A reliable manufacturing process is essential for consistent motor performance.

Stator Production

The stator core is manufactured according to the electromagnetic design.

Dimensional accuracy is important because the air gap and pole structure influence motor characteristics.

Winding

Copper wire is wound around the stator according to the specified electrical design.

Consistent winding quality helps maintain stable resistance and operating performance.

Shading Ring Assembly

The copper shading ring is positioned accurately around the designated portion of the stator pole.

Its position influences the magnetic phase characteristics of the motor.

Rotor Assembly

The rotor is installed into the stator with the specified air gap.

Accurate assembly helps reduce vibration and mechanical noise.

Final Assembly

Housing, shaft, bearings, wiring, and other components are assembled according to engineering specifications.

Performance Testing

Finished products should be tested for electrical and mechanical performance before shipment.

Quality Control

Quality control should cover every stage of production.

A professional Shaded Pole Motor Manufacturer may conduct:

• Incoming material inspection
• Winding resistance testing
• Insulation testing
• Speed testing
• Current testing
• Power testing
• Temperature testing
• Noise testing
• Vibration testing
• Dimensional inspection
• Endurance testing

Consistent inspection procedures help identify production deviations before products reach customers.

For OEM customers, reliable quality control is especially important because motor performance must remain consistent across production batches.

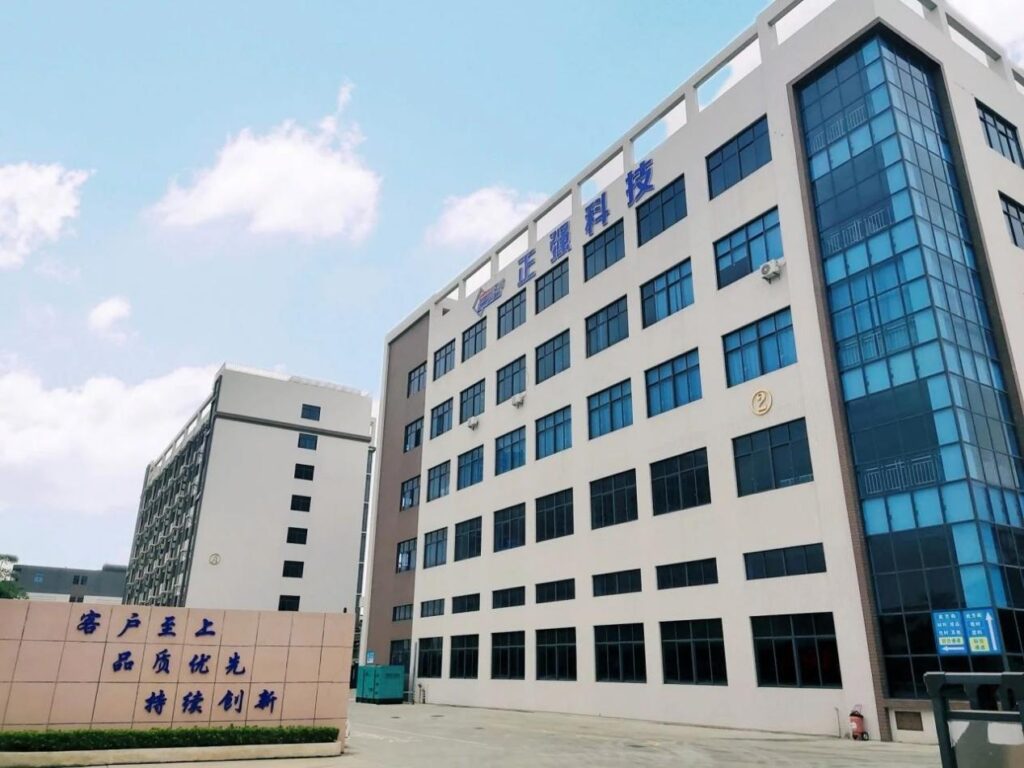

Why Choose ZhengQiang Technology?

ZhengQiang Technology provides motor manufacturing and customized OEM/ODM services for customers across different industries.

The company’s manufacturing capabilities include:

• AC motor manufacturing
• Shaded pole motor production
• DC motor manufacturing
• BLDC motor solutions
• Synchronous motors
• Series motors
• Precision metal processing
• CNC machining
• Metal stamping
• Tooling
• Component manufacturing
• Assembly
• Quality inspection

The combination of motor manufacturing and precision component production can help customers simplify their supply chain.

For OEM projects requiring customized dimensions or performance characteristics, ZhengQiang Technology can work with customers from product development through manufacturing.

Visit:

https://www.zqatech.com/

How to Choose the Right Shaded Pole Motor Manufacturer

Selecting a supplier should not be based on price alone.

Manufacturing Experience

A supplier with practical motor manufacturing experience can better understand the relationship between materials, winding, rotor design, assembly, and performance.

Engineering Capability

Engineering support is important for customized products.

A good supplier should be able to review drawings, specifications, samples, and application requirements.

Quality Management

Ask about inspection procedures, testing equipment, production control, and product traceability.

Production Capacity

The supplier should be capable of supporting both prototype development and volume production.

Customization Capability

OEM projects often require customized shaft dimensions, mounting structures, voltage, speed, wiring, and housing configurations.

Communication

Clear communication between the customer and manufacturer can reduce specification errors and shorten development time.

Frequently Asked Questions

What does a Shaded Pole Motor Manufacturer produce?

A Shaded Pole Motor Manufacturer develops and produces single-phase AC motors using shaded pole technology. These motors are commonly used in fans, blowers, ventilation equipment, appliances, and other low-power applications.

What are shaded pole motors mainly used for?

They are commonly used for fans, blowers, ventilation systems, HVAC equipment, household appliances, cooling equipment, and other applications requiring compact AC motors.

Can a Shaded Pole Motor Manufacturer customize the motor?

Yes. OEM customers can request customized voltage, frequency, power, speed, shaft dimensions, mounting configuration, wiring, housing, and other specifications.

Are shaded pole motors suitable for continuous operation?

They can be suitable for continuous operation when the motor is correctly designed and matched to the application. Load, ambient temperature, bearings, ventilation, and duty cycle should all be considered.

Are shaded pole motors suitable for fan applications?

Yes. Fan and blower applications are among the common uses of shaded pole motors because these applications often require compact, simple, and economical AC motor solutions.

How can I request a custom motor?

OEM buyers can provide voltage, frequency, power, speed, torque, dimensions, shaft requirements, operating conditions, drawings, samples, and estimated order quantities to the manufacturer.

Conclusion

A reliable Shaded Pole Motor Manufacturer can provide practical AC motor solutions for fans, blowers, HVAC systems, household appliances, ventilation equipment, and other low-power applications.

The technology is valued for its simple construction, compact size, economical production, and straightforward AC integration. However, the correct motor should always be selected according to the actual voltage, frequency, power, speed, torque, load, installation space, and operating environment.

For OEM and ODM customers, choosing an experienced Shaded Pole Motor Manufacturer can also provide advantages during product development, customization, testing, and mass production.

ZhengQiang Technology combines motor manufacturing with precision metal processing, stamping, tooling, component manufacturing, assembly, and quality management. This integrated manufacturing capability allows customers to work with one supplier for a broader range of motor and precision component requirements.
